COLD FORMED ASTM A500 GR C RECTANGULAR HOLLOW SECTION

Cold Formed Rectangular Hollow Section

Hollow Section

Product

A500 Gr C Cold Formed ERW RHS Pipes Dealers in India, ASTM A500 Gr C Seamless Cold Formed Rectangular Hollow Section Tube, ASTM A500 Gr C Cold Formed Welded Structural Rectangular Tubing.

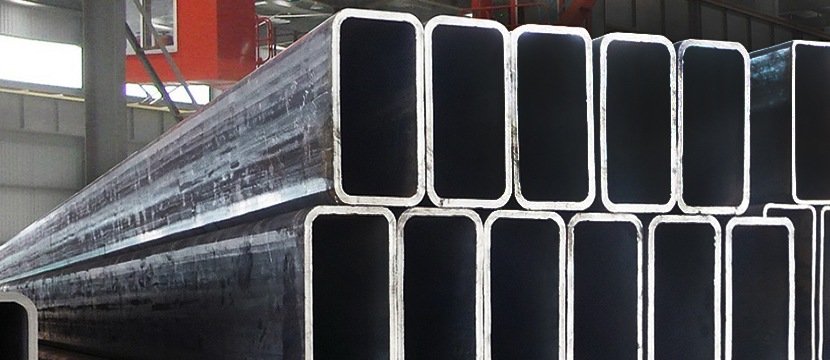

Hollow Section Profiles is a well-known manufacturer, supplier, and stockiest of Cold Formed ASTM A500 Gr C Rectangular Hollow Section. It is specially manufactured under the guidance of experts using new advanced technology. The Feature of ASTM A500 Gr Cold Formed Welded Structural Rectangular Tubing is that it is durable as it is manufactured using good quality raw material, it possesses good formability and welding properties, and it provides excellent corrosion resistance to many corrosive environments.

The size of ASTM A500 Grade C Cold Formed Mild Steel Rectangular Tube ranges from 2m*2m to 12m*12m. It cannot be hardened and strengthened further by the heat working process. Cold Formed ASTM A500 Gr C Rectangular Hollow Section Welded Pipes can be annealed at the temperature between 1010 Degree C to 1120 Degree C. after heating it at the above temperature, it should be cooled rapidly. This Cold Formed ASTM A500 Gr C Rectangular Hollow Section is available in round, Rectangular and rectangular shapes. Its wall thickness ranges from 120, 500, 180, 313, 375, to 188, whereas its length starts from 20, 24, 48, to 40.

The Cold Formed ASTM A500 Gr C Rectangular Hollow Section Rectangular Pipes are used in numerous industries. It is widely used for chemical processing equipment, refinery equipment, and chemical storage equipment. It is also used in the brewing industry such as in pipelines and storage. The ASME A500 Gr C Cold Formed Rectangular Hollow Section Tubing possesses high tensile strength, and it is used for structural support and in oil field services. Grab these pipes at the most affordable price.

ASTM A500 Gr C Cold Formed Mild Steel Rectangular Hollow Section Exporters, Cold Formed ASTM A500 Gr C Rectangular Box Sections, Gr. C ASTM A500 CS Cold Formed Rectangular Pipes Distributors, ASME SA500 Gr C Cold Formed RHS Tubing in Mumbai, India.

Specification

Hollow Section Specification

Standard Specification	ASTM A500 Cold-Formed Welded and Seamless Carbon Steel Structural Rectangular Tubing
Grade	ASTM A500 Grade C
Sizes	50*20mm-400-300mm
Wall Thickness	0.5mm – 25mm
Length	6000-14000 mm
Type	Seamless/ Welded / ERW
Dimensional Tolerances	Thickness (All sizes +/- 10%)
Packing	In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark
Surface Protection	Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized

Properties

Chemical Composition
Mechanical Properties

ASTM A500	C, max	Mn, max	P, max	S, max	Cu, min
Grade C	0.23	1.35	0.035	0.035	0.20

ASTM A500	Tensile strength, min	Yield strength, min,	Elongation in 2 in. (50.8 mm) min, %
Grade C	427 MPa, 62 000 psi	345 MPa, 50 000 psi	21

size and weight

Hollow Section size and weight

Size mm	kg/m	Size mm	kg/m
40 x 20 x 2.0	1.68	40 x 20 x 2.5	2.03
40 x 20 x 3.0	2.36	40 x 25 x 1.5	1.44
40 x 25 x 2.0	1.89	40 x 25 x 2.5	2.23
50 x 25 x 2.0	2.21	50 x 25 x 2.5	2.72
50 x 25 x 3.0	3.22	50 x 30 x 2.5	2.92
50 x 30 x 3.0	3.45	50 x 30 x 4.0	4.46
50 x 40 x 3.0	3.77	60 x 40 x 2.0	2.93
60 x 40 x 2.5	3.71	60 x 40 x 3.0	4.39
60 x 40 x 4.0	5.72	70 x 50 x 2	3.56
70 x 50 x 2.5	4.39	70 x 50 x 3.0	5.19
70 x 50 x 4.0	6.71	80 x 40 x 2.5	4.26
80 x 40 x 3.0	5.34	80 x 40 x 4.0	6.97
80 x 40 x 5.0	8.54	80 x 50 x 3.0	5.66
80 x 50 x 4.0	7.34	90 x 50 x 3.0	6.28
90 x 50 x 3.6	7.46	90 x 50 x 5.0	10.11
100 x 50 x 2.5	5.63	100 x 50 x 3.0	6.75
100 x 50 x 4.0	8.86	100 x 50 x 5.0	10.90
100 x 60 x 3.0	7.22	100 x 60 x 3.6	8.59
100 x 60 x 5.0	11.70	120 x 80 x 2.5	7.65
120 x 80 x 3.0	9.03	120 x 80 x 4.0	12.00
120 x 80 x 5.0	14.80	120 x 80 x 6.0	17.60
120 x 80 x 8.0	22.9	150 x 100 x 5.0	18.70
150 x 100 x 6.0	22.30	150 x 100 x 8.0	29.10
150 x 100 x 10.0	35.70	160 x 80 x 5.0	18.00
160 x 80 x 6.0	21.30	160 x 80 x 8.0	27.90
200 x 100 x 5.0	22.70	200 x 100 x 6.0	27.00
200 x 100 x 8.0	35.4	200 x 100 x 10.0	43.60
250 x 150 x 5.0	30.5	250 x 150 x 6.0	38.2
250 x 150 x 8.0	48.0	250 x 150 x 10	59.3
300 x 200 x 6.0	48.10	300 x 200 x 8.0	60.50
300 x 200 x 10.0	75.00	400 x 200 x 8.0	73.10
400 x 200 x 10.0	90.70	400 x 200 x 16	142.00

Industries We Serve :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

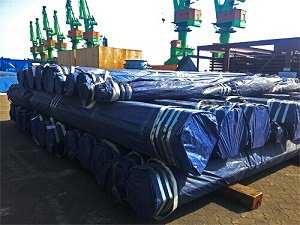

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
