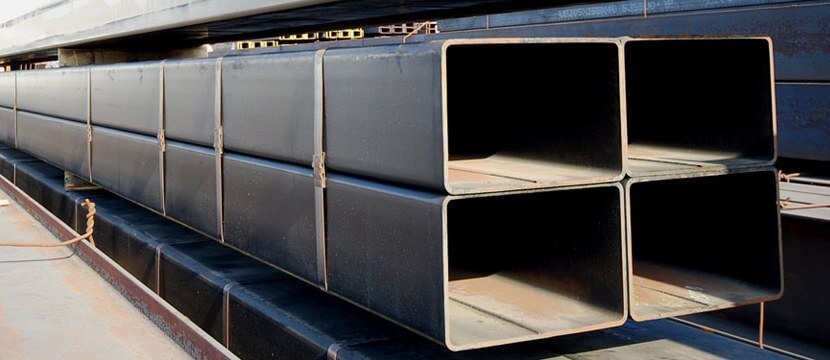

COLD FORMED EN 10219 S355J2H RECTANGULAR HOLLOW SECTION

Cold Formed Rectangular Hollow Section

Hollow Section

Product

Carbon Steel S355J2H Rectangular Hollow Section Suppliers in Mumbai, EN 10219 S355J2H MS Cold Formed Rectangular Tube Stockists in India, Cold Formed EN 10219 S355J2H RHS Pipe.

Hollow Section Profiles is one of the best Manufacturer, Stockiest, Supplier, and exporter of Cold Formed EN 10219 S355J2H Rectangular Hollow Section. This S355J2H Cold Formed Welded Structural Rectangular Hollow Section contains manganese content up to 1.60%, silicon & carbon 0.55%, and 0.22% respectively, and phosphorus and sulfur 0.030%. It also includes some portion of molybdenum content. The length of Cold Formed EN 10219 S355J2H Rectangular Hollow Section Round Pipes ranges from 6000mm to 14000mm and its wall thickness from 0.5mm to 25mm. Customers can get these pipes at their desired shapes and sizes.

Cold Formed EN 10219 S355J2H Rectangular Hollow Section ERW Pipes can be used effectively at high elevated temperature. Usually, It is used between the temperature range of 500 Degree C to 800 Degree C. In continues service, It can be used up to 899 Degree C. These Cold Formed S355J2H Mild Steel Rectangular Hollow Sections are less resistant to air and water. It possesses high mechanical strength. It has high tensile and yield strength. These hollow sections are highly durable and are available at the most affordable price. These Cold Formed EN 10219 S355J2H Rectangular Hollow Section EFW Pipes cannot be hardened further by the heat working process. It possesses the best welding properties.

Cold Formed EN 10219 S355J2H Rectangular Box Sections are mostly used in the construction industry. It is mostly used in the construction of buildings, dams, etc. Cold Formed EN 10219 S355J2H Rectangular Hollow Section Rectangular Pipes are mostly used in the architecture industry. It is also used widely in marine industry and offshore oil drilling companies.

S355J2H CS Cold Formed Rectangular Pipes Distributors, Cold Formed EN 10219 S355J2H Rectangular Box Sections, BS EN 10219 S355J2H Cold Formed RHS Tubes, Cold Formed S355J2H Mild Steel Rectangular Hollow Section Exporters in Mumbai, India.

Specification

Hollow Section Specification

Standard	BS EN 10219 – Cold Formed Welded Structural Hollow Sections of Non-alloy and Fine Grain Steels
Grade	S355J2H
RHS Size	10mm x 15mm — 150mmx50mm — 300mmx400mm — 600mmx550mm
Wall Thickness	0.5mm – 25mm
Length	6000-14000 mm
Type	Seamless/ Welded / ERW
Dimensional Tolerances	Thickness (All sizes +/- 10%)
Packing	In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark
Surface Protection	Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized

Properties

Chemical Composition
Mechanical Properties

Steel Grade	C	Si	Mn	P	S	N_b	Carbon Equivalent(CEV)
S355J2H	0.22	0.55	1.60	0.030	0.030	–	0.45

Grade	Min. Yield Strength R_eh(Mpa)		Tensile Strength Rm (MPa)		Elongation % Min.	Min. Impact Energy(J)
Grade	Thk≤ 16 mm	Thk>16 ≤ 40 mm	Thk<3 mm	Thk≥3 mm	Elongation % Min.	-20°C	0°C	20°C
S355J2H	355	345	510-680	470-630	20	27	–	–

size and weight

Hollow Section size and weight

Size mm	kg/m	Size mm	kg/m
40 x 20 x 2.0	1.68	40 x 20 x 2.5	2.03
40 x 20 x 3.0	2.36	40 x 25 x 1.5	1.44
40 x 25 x 2.0	1.89	40 x 25 x 2.5	2.23
50 x 25 x 2.0	2.21	50 x 25 x 2.5	2.72
50 x 25 x 3.0	3.22	50 x 30 x 2.5	2.92
50 x 30 x 3.0	3.45	50 x 30 x 4.0	4.46
50 x 40 x 3.0	3.77	60 x 40 x 2.0	2.93
60 x 40 x 2.5	3.71	60 x 40 x 3.0	4.39
60 x 40 x 4.0	5.72	70 x 50 x 2	3.56
70 x 50 x 2.5	4.39	70 x 50 x 3.0	5.19
70 x 50 x 4.0	6.71	80 x 40 x 2.5	4.26
80 x 40 x 3.0	5.34	80 x 40 x 4.0	6.97
80 x 40 x 5.0	8.54	80 x 50 x 3.0	5.66
80 x 50 x 4.0	7.34	90 x 50 x 3.0	6.28
90 x 50 x 3.6	7.46	90 x 50 x 5.0	10.11
100 x 50 x 2.5	5.63	100 x 50 x 3.0	6.75
100 x 50 x 4.0	8.86	100 x 50 x 5.0	10.90
100 x 60 x 3.0	7.22	100 x 60 x 3.6	8.59
100 x 60 x 5.0	11.70	120 x 80 x 2.5	7.65
120 x 80 x 3.0	9.03	120 x 80 x 4.0	12.00
120 x 80 x 5.0	14.80	120 x 80 x 6.0	17.60
120 x 80 x 8.0	22.9	150 x 100 x 5.0	18.70
150 x 100 x 6.0	22.30	150 x 100 x 8.0	29.10
150 x 100 x 10.0	35.70	160 x 80 x 5.0	18.00
160 x 80 x 6.0	21.30	160 x 80 x 8.0	27.90
200 x 100 x 5.0	22.70	200 x 100 x 6.0	27.00
200 x 100 x 8.0	35.4	200 x 100 x 10.0	43.60
250 x 150 x 5.0	30.5	250 x 150 x 6.0	38.2
250 x 150 x 8.0	48.0	250 x 150 x 10	59.3
300 x 200 x 6.0	48.10	300 x 200 x 8.0	60.50
300 x 200 x 10.0	75.00	400 x 200 x 8.0	73.10
400 x 200 x 10.0	90.70	400 x 200 x 16	142.00
