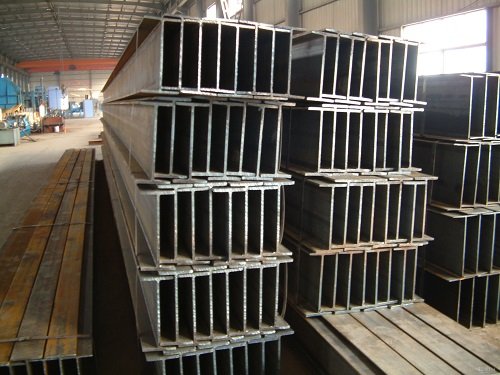

EN 10025 S275JR/S275J0/S275J2 NARROW PARALLEL FLANGE BEAM

NARROW PARALLEL FLANGE BEAMS

Beam & structure

Product

EN 10219 S235JRH MS Cold Formed Rectangular Tube Stockists in India, Carbon Steel S235JRH Rectangular Hollow Section Suppliers in Mumbai, Cold Formed EN 10219 S235JRH RHS Pipe.

At Hollow Section Profiles, These EN 10025 S275JR / S275J0 / S275J2 NARROW Parallel Flange Beams are manufactured under the proper guidance and direction of industry experts. It provides longer durability. These EN 10025 S275JR Narrow Parallel Flange Beams come in doubly symmetric shapes. The width of these EN 10025 S275J0 Narrow Parallel Flanges ranges from 100mm to 270mm. It has a length of 12 meters. These EN 10025 S275J2 NARROW Parallel Flange Beams can also be used in refineries, railway bridges, power plants, etc.

Hollow Section Profiles is one of the best manufacturers, suppliers, and exporters of EN 10025 S275JR NARROW Parallel Flange Beams. These EN 10025 S275J0 NARROW Parallel Flange Beams are used in most of the construction projects. These EN 10025 S275J2 NARROW Parallel Flange Beams are used in power plants, industrial sheds, warehouses, offshore structures. These EN 10025 S275JR Parallel Flange Beams has been an ideal choice for construction projects as it provides high strength and it gets manufactured at very cheap rates comparing to other beams.

These EN 10025 S275J0 NARROW Parallel Flange Beams can carry weight at the time when wind or an earthquake occurs. These EN 10025 S275J2 NARROW Parallel Flange Beams are very light in weightage. These EN 10025 S275JR NARROW Parallel Flange Beams can carry vertical gravitational force as well as horizontal loads. It has greater depth. The invention of EN 10025 S275J0 NARROW Parallel Flange Beams has been proved one of the important innovations in the industry. This EN 10025 S275J2 NARROW Parallel Flange Beam provides the required balance and stability to the construction.

Grade S235JRH Cold Formed Welded Structural Rectangular Hollow Section, EN 10219 S235JRH Seamless Cold Formed Rectangular Hollow Section Tubing, EN 10219 Cold Formed S235JRH ERW RHS Pipes Dealers in India.

Specification of EN 10025 S275JR/S275J0/S275J2 NARROW PARALLEL FLANGE BEAM

Specification

Size	100mm x 100mm — 1000mm x 3000mm —
Wall Thickness	0.5mm – 25mm
Length	6000-14000 mm
Dimensional Tolerances	Thickness (All sizes +/- 10%)
Packing	In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark
Surface Protection	Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized

Properties

S275JR GRADE

Equivalent Grade Of S275JR
Chemical Composition

EU
EN

USA
–

Germany
DIN,WNr

Japan
JIS

France
AFNOR

England
BS

Canada
HG

European old
EN

Italy
UNI

Belgium
NBN

Spain
UNE

China
GB

Sweden
SS

Poland
PN

Czechia
CSN

Finland
SFS

Austria
ONORM

Norway
NS

Russia
GOST

Inter
ISO

Portugal
NP

India
IS

S275JR

A283D

A529

Gr.D

RSt42-2

St 44-2

SS400

E28-2

161-430

43A

43B

260W

260WT

Fe430B

AE295B

AE255B

Q225A

Q275Z

1411

1412

St4V

11425

Fe44B

St42F

St430B

NS12142

St4ps

St4sp

E275B

FE430-B

IS2062

C	Mn	P	S	N	Cu	CEV
max 0.22	max 1.5	max 0.04	max 0.04	max 0.012	max 0.55	max 0.42

S275JO GRADE

Equivalent Grade Of S275JO
Chemical Composition

EU
EN

USA
–

Germany
DIN,WNr

France
AFNOR

England
BS

European old
EN

Italy
UNI

Belgium
NBN

Spain
UNE

China
GB

Austria
ONORM

Norway
NS

Russia
GOST

Inter
ISO

Portugal
NP

India
IS

S275J0

A578Gr.70

St44-3

St44-3U

E28-3

43C

Fe430C

AE295C

AE255C

AE275C

Q275

St430C

NS12143

St4ps

St4sp

E275C

FE430-C

Fe410WA

C	Mn	P	S	N	Cu	CEV
max 0.18	max 1.5	max 0.035	max 0.035	max 0.012	max 0.55	max 0.42

S275J2 GRADE

Equivalent Grade Of S275J2
Chemical Composition

EU
EN

England
BS

European old
EN

Belgium
NBN

China
GB

Sweden
SS

India
IS

S275J2

43EE

Fe430D2

S275J2G4

AE295DD

Q275

1414-01

Fe410WC

C	Mn	P	S	Cu	CEV
max 0.18	max 1.5	max 0.03	max 0.03	max 0.55	max 0.42

size and weight

Dimensions NPB 1
Dimensions NPB 2
Dimensions NPB 3
Dimensions NPB 4

Beam (NPB)	Mass	Area	Dimensions
	Mass	Area	Depth	Width	Web Thick	Flange Thick	Root Rad
	M	A	H	B		tr	r
	kgJm	cm2	mm	mm	mm	mm	mm
NPB 100X55	8.10	10.	100	55	4.	6.	7
NPB 120X60	10.	13.	120	64	4.	6.	7
NPB 140X70	12.90	16.	140	73	5.	7.	7
NPB 160X80	16.	20.	160	82	5	7.	9
NPB 180X90	15.	20.	177	91	4.	7.	9
NPB 180X90	18.80	24.	180	91	5.	8	9
NPB 180X90	21.	27.10	182	92	6	9	9
NPB 200X100	18.	23.	197	100	5.	7	12
NPB 200X100	22.	28.	200	100	6.	9.	12
NPB 200X100	25.	32.	202	102	6.	10.	12
NPB 200X130	27.	35.	207	133	6.	9.	12
NPB 200X130	32.	40.20	210	134	6.	10	12
NPB 200X150	30.	38.80	194	150	6	9	12
NPB 200X165	36.	45.	201	165	6.	10	12
NPB 200X165	42.	54.	205	166	7.	12	12
NPB 200X165	48.00	81.	210	166	7.	15.	12

Beam (NPB)	Mass	Area	Dimensions
	Mass	Area	Depth	Width	Web Thick	Flange Thick	Root Rad
	M	A	H	B	tw	ti	r
	kg/m	cm2	mm	mm	mm	mm	mm
NPB 220X110	2/18	28.	217	110	5	8.	12
NPB 220X110	26.20	33.	220	110	6.	9.	12
NPB 220X110	29.	37.	222	112	7.	10.	12
NPB 240X120	26.	33.	237	120	5.	8.	15
NPB 240X120 (IPE 240)	31.	39.	240	120	6.	10.	15
NPB 240X120	34.	44.	242	122	7	11.	15
NPB 250X125	30.	38.	250	125	6	9	15
NPB 250X150	34.	43.	258	146	6.	9.	15
NPB 250X150	40.	51.	262	147	7.	I I.2	15
NPB 250X150	46.	59.	266	148	8.	13.	15
NPB 250X175	44.	56.	244	175	7	11	15
NPB 270X135	31.	39.	267	135	6.	9.	15
NPB 270X135 (IPE 270)	36.	46.	270	135	7.	10.	15
NPB 270X135	42.	54.	274	136	8.	12.	15

Beam (NPB)	Mass	Area	Dimensions
	Mass	Area	Depth	Width	Web Thick	Flange Thick	Root Rad
	M	A	H	B	tw	tr	r
	kg/m	cm2	mm	mm	mm	mm	mm
NPB 300X150 (IPE 300)	37.	47.	297	150	6.	9.	15
NPB 300X150 (IPE 300)	42.	54.	300	150	7.	11.	15
NPB 300X150 (IPE 300)	49.	63.	304	152	8	13.	15
NPB 300X165	40.	50.80	310	165	6.	10.	15
NPB 300X165	46.	58.30	313	166	7.	11.	15
NPB 300X165	53.	68.	317	167	8.	13.	15
NPB 350X250	79.	101.	340	250	9	14	18
NPB 400X180 (IPE 400)	57.	73.10	397	180	7	12	21
NPB 400X180 (IPE 400)	66.	84.	400	180	9.	14.	21
NPB 400X180 (1PE 400)	76.	96.	404	182	10.	16.	21

Beam (NPB)	Mass	Area	Dimensions
	Mass	Area	Depth	Width	Web Thick	Flange Thick	Root Rad
	M	A	H	Bt,		tf	r
	kg/m	cm2	mm	mm	mm	mm	mm
NPB 400X200	67.	86.	400	200	8	13	21
NPB 450X190 (IPE 450)	67.	86.	447	190	8.	13.	21
NPB 450X190 (IPE 450)	78.	99.	450	190	9.	15.	21
NPB 450X190 (IPE 450)	92.	118.	456	192	11	18.	21
NPB 500X200 (IPE 500)	79.	101.10	497	200	8.	15.	21
NPB 500X200 (IPE 500)	91.	116.	500	200	10.	16	21
NPB 500X200 (IPE 500)	107.	137.	506	202	12	19	21
NPB 550X210 (IPE 550)	106.	134.	550	210	11.	17.	24
NPB 600X220 (IPE 600)	108.	137.	597	220	10.	18.	24
NPB 600X220 (IPE 600)	122.	156.	600	220	12	19	24
NPB 600X220 (IPE 600)	154.	197.	610	224	15	24	24
NPB 750X270 (IPE 750)	145.	185.	750	265	13.	17.	17
NPB 750X270 (IPE 750)	175.	222.	760	270	14.	22.	17
NPB 750X270 (IPE 750)	202.	258.	770	270	16.	27.	17
