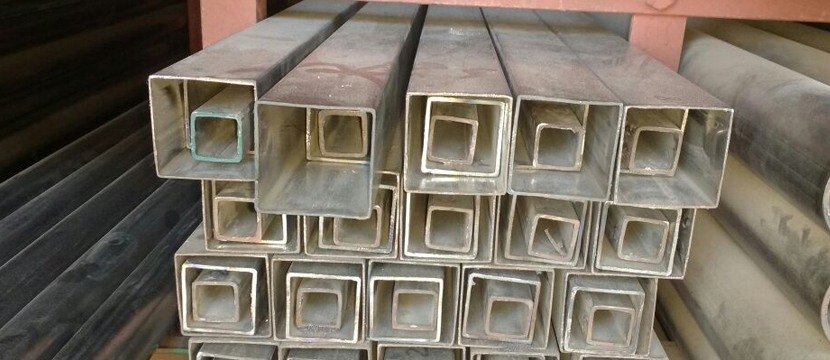

STAINLESS STEEL A554 GR 409/409L SQUARE HOLLOW SECTIONS

Stainless Steel Square Hollow Sections

Hollow Section

Product

Gr 409/409L SS ASTM A554 SHS Tubing Stockists in India, Grade 409L A554 SS Square Tube Suppliers in Mumbai, Stainless Steel UNS S40900 SHS Pipe, ASME SA554 Stainless Steel UNS S40903 Square Pipe, ASTM A554 SS 409 Square Hollow Section.

Hollow Section Profiles is the premium manufacturer, stockiest, supplier, and exporter of Stainless Steel 409/409L Square Hollow Sections, which possess high tensile strength and yield strength. These A554 Stainless Steel 409 Structural Square Hollow Sections are well designed and highly durable. It also provides the best corrosion resistance properties. These Gr 409/409L square hollow sections provide longer service as it is manufactured using the best quality raw material and under the guidance of highly skilled experts.

These Stainless Steel A554 Gr 409 Rectangular Hollow Section EFW Pipes can be annealed and it possesses high welding and mechanical properties. A554 Stainless Steel 409 Structural Square Hollow Sections contains chromium content up to 11.7% and manganese and silicon content up to 1%. It possesses tensile strength up to 379 MPa and yield strength up to 207 MPa. The Size of 409L Stainless Steel Welded Square Tubes ranges from 20mm*20mm to 400mm*400mm. while it has a length of up to 6 meters. These AISI 409 Stainless Steel Square Hollow Section tubes can be completely customized, clients can have these pipes as per their specifications. These Gr 409/409L Square Hollow Sections have a wide range of applications in different industries.

Stainless Steel A554 Gr 409 Rectangular Hollow Section Seamless Pipes are mostly used in the marine industry and construction industry. Stainless Steel A554 Gr 409 Rectangular Hollow Section EFW Pipes can be used in heat exchangers and condensers. To protect these ASTM A554 Stainless Steel 409 Square Hollow Section from getting damaged and dusted during transportation, It is well packed and crammed under wooden boxes, carton boxes, and wooden crates.

AISI 409 Stainless Steel Square Hollow Section Tube Exporters, Stainless Steel A554 Gr 409L SHS Tubes, SS SUS 409 Square Box Sections Distributors, DIN 1.4512 SS Square Hollow Section Pipes in Mumbai, India.

Specification

Hollow Section Specification

Specifications	ASTM A554 / ASME SA554(Ornamental Tubing Specification) or ASTM A 312
Size	20x20mm to 400x400mm, other non standard sizes available on request
Wall Thickness	0.5mm to 6mm
Length	Up to 6 meters, custom cut lengths
Type	Seamless/ Welded / ERW
Finish	2B, No.1 Pickled Finish, No.4 finish, BA Finish, No.8 Mirror Finish, Electropolished Square Pipes
Delivery Condition	Bright Annealed, Polished or Annealed and Pickled
Packing	In bundles, coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark

Properties

Equivalent Grades
Chemical Composition
Mechanical Properties

STANDARD	WERKSTOFF NR.	UNS	BS	JIS
SS 409	1.4512	S40900	409S19	SUS 409
SS 409L	1.4512	S40903	–	–

Grade		C	Ni	Si	S	Mn	P	Cr	Ti
SS 409/409L	min.	–	–	–	–	–	–	10.5	6*(%C+%N)
SS 409/409L	max.	0.03	0.5	1.00	0.02	1.00	0.04	11.7	0.5

Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
			Rockwell B (HRB) max	Brinell (HB) max
379	207	20	75	131

size and weight

Hollow Section size and weight

Size mm	kg/m	Size mm	kg/m
20 x 20 x 2.0	1.12	20 x 20 x 2.5	1.35
25 x 25 x 1.5	1.06	25 x 25 x 2.0	1.43
25 X 25 X 2.5	1.74	25 X 25 X 3.0	2.04
30 X 30 X 2.0	1.68	30 X 30 X 2.5	2.14
30 X 30 X 3.0	2.51	40 x 40 x 1.5	1.81
40 x 40 x 2.0	2.31	40 x 40 x 2.5	2.92
40 x 40 x 3.0	3.45	40 x 40 x 4.0	4.46
40 x 40 x 5.0	5.40	50 x 50 x 1.5	2.28
50 x 50 x 2.0	2.93	50 x 50 x 2.5	3.71
50 x 50 x 3.0	4.39	50 x 50 x 4.0	5.72
50 x 50 x 5.0	6.97	60 x 60 x 3.0	5.34
60 x 60 x 4.0	6.97	60 x 60 x 5.0	8.54
60 x 60 x 6.0	9.45	70 x 70 x 3.0	6.28
70 x 70 x 3.6	7.46	70 x 70 x 5.0	10.11
70 x 70 x 6.3	12.50	70 x 70 x 8	15.30
75 x 75 x 3.0	7.07	80 x 80 x 3.0	7.22
80 x 80 x 3.6	8.59	80 x 80 x 5.0	11.70
80 x 80 x 6.0	13.90	90 x 90 x 3.0	8.01
90 x 90 x 3.6	9.72	90 x 90 x 5.0	13.30
90 x 90 x 6.0	15.76	90 x 90 x 8.0	20.40
100 x 100 x 3.0	8.96	100 x 100 x 4.0	12.00
100 x 100 x 5.0	14.80	100 x 100 x 5.0	14.80
100 x 100 x 6.0	16.19	100 x 100 x 8.0	22.90
100 x 100 x 10	27.90	120 x 120 x 5	18.00
120 x 120 x 6.0	21.30	120 X 120 X 6.3	22.30
120 x 120 x 8.0	27.90	120 x 120 x 10	34.20
120 X 120 X 12	35.8	120 X 120 X 12.5	41.60
140 X 140 X 5.0	21.10	140 X 140 X 6.3	26.30
140 X 140 X 8	32.90	140 X 140 X 10	40.40
140 X 140 X 12.5	49.50	150 X 150 X 5.0	22.70
150 X 150 X 6.3	28.30	150 X 150 X 8.0	35.40
150 X 150 X 10	43.60	150 X 150 X 12.5	53.40
150 X 150 X 16	66.40	150 X 150 X 16	66.40
180 X 180 X 5	27.40	180 X 180 X 6.3	34.20
180 X 180 X 8	43.00	180 X 180 X 10	53.00
180 X 180 X 12.5	65.20	180 X 180 X 16	81.40
200 X 200 X 5	30.50	200 X 200 X 6	35.8
200 x 200 x 6.3	38.2	200 x 200 x 8	48.00
200 x 200 x 10	59.30	200 x 200 x 12.5	73.00
200 x 200 x 16	91.50	250 x 250 x 6.3	48.10
250 x 250 x 8	60.50	250 x 250 x 10	75.00
250 x 250 x 12.5	92.60	250 x 250 x 16	117.00
300 x 300 x 6.3	57.90	300 x 300 x 8	73.10
300 x 300 x 10	57.90	300 x 300 x 8	90.70
300 x 300 x 12.5	112.00	300 x 300 x 16	142.00
350 x 350 x 8	85.70	350 x 350 x 10	106.00
350 x 350 x 12.5	132.00	350 x 350 x 16	167.00
400 x 400 x 10	122.00	400 x 400 x 12	141.00
400 x 400 x 12.5mm	152.00	400 x 400 x 16	192

Industries We Serve :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
